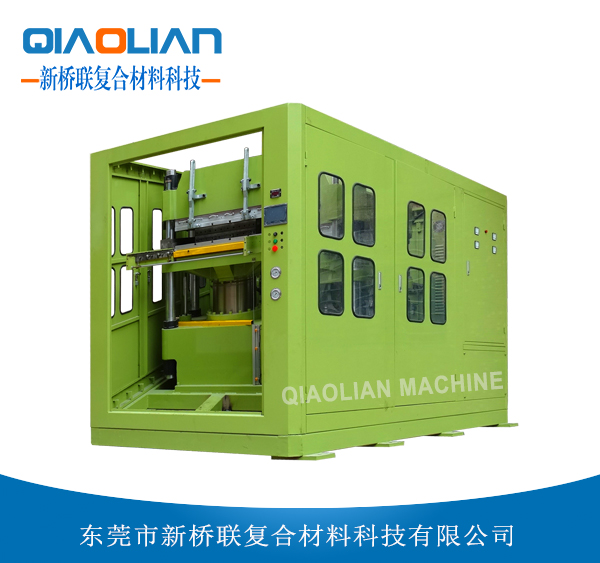

热塑性纤维成型机简称热塑成型机
主要针对热塑性ABS/PP/PA纤维片材二次成型，根据热塑性成型工艺要求设备提供片材快速均匀升温、低温定型原理实现节能、高效大批量生产。
Thermoplastic Fiber Molding Machine Abbreviated as Thermoplastic Molding Machine
Aiming at the secondary forming of thermoplastic ABS/PP/PA fiber sheet.According to the requirement of thermoplastic forming process, the equipment provides the principle of rapid uniform heating and low temperature setting to realize energy saving and high efficiency mass production.
应用范围：
轻量化汽车配件、航空座椅、新能源电池保护盖及壳体、汽车装饰件、3C电器产品壳体等。
Application:
Lightweight automotive accessories, aviation seats, new energy battery cover and shell, automotive decorative parts, 3C electrical products shell, etc.
技术参数/Technical parameters：
| 型号Type | SHM-560 | SHM-600 | SHM-750 | SHM-1000 | SHM-1500 |
| 面板尺寸Heating plate size (mm) | 560*560 | 600*600 | 750*1000 | 1000*1250 | 1000*1500 |
| 合模力Clamping Force (T) | 100T-500T | ||||
| 行程Stroke (mm) | 250-300 | 250-300 | 250-300 | 250-300 | 250-300 |
| 功率Power (KW) | 5.5/7.5 | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 |
| 控制系统Control System | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
| 备注Remarks | 面板尺寸可定做 | ||||
*如有参数变更，恕不另行通知。We reserve the right to change any design and specification without ontice.
